Low Level Order Pickers

Designed to meet every need of a high-pressure order picking environment, the CESAB O-series delivers productive, ergonomic and safe warehouse operations.

Demonstrating quality in both manufacture and performance, the CESAB O-Series has been built to handle all kinds of tasks at first and second level. With load capabilities from 1000 to 2500 kg, the O-Series can work with multiple load carriers and carry high numbers of pallets or roll containers. This means O-Series trucks pick more in each picking round, guaranteeing greater productivity and reduced travel over every shift.



Receive my quotation

Contact us

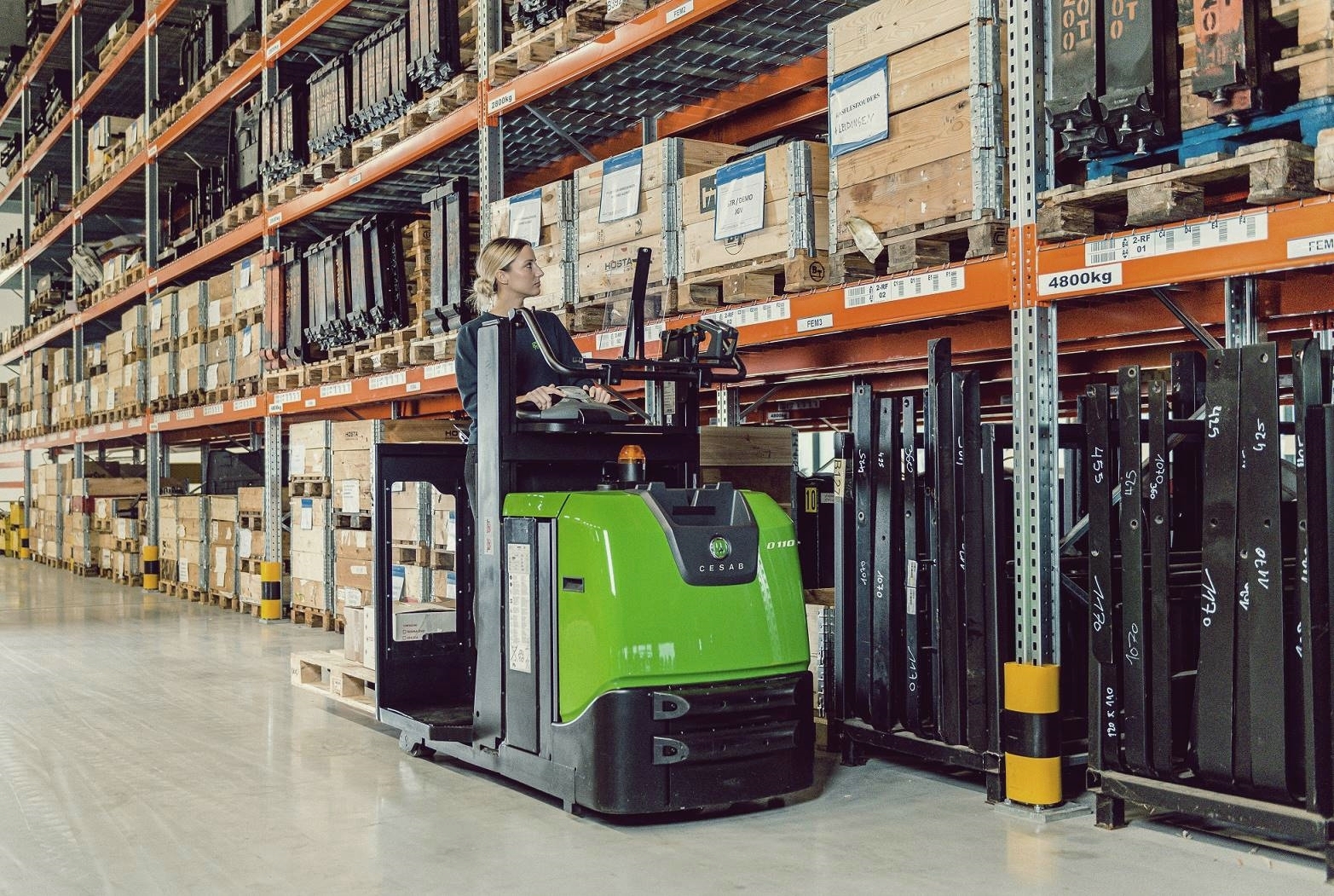

CESAB O-series O110

O110 - O110W:

The CESAB O-series focuses on high load capacities and maximization of output in order to achieve optimal performance at every level.

The ultra-compact design of the CESAB O-Series allows for optimum use of warehouse space and easy manoeuvring in picking aisles. Designed to work with the operator, not the other way around, CESAB O-Series trucks are fully programmable from personal settings for top speed and acceleration to individual auto-braking settings.

    Regenerative braking lets energy flow back to the battery whenever the operator presses the brake pedal. This energy-saving feature helps each O-Series truck achieve maximum uptime from every battery charge.

    But these trucks are also designed to provide maximum safety thanks to:

    • Sturdy chassis construction, protecting both operator & load
    • PIN-protected operation
    • Choice between 3-4 wheels for optimal stability
    • Automatic speed reduction
    • Automatic braking when the operator leaves the vehicle while driving
    • High grip floor

    The CESAB O110 & O110W is a stand-on truck allowing the driver and forks to comfortably pick at height, offering:

    • a load capacity of 1000 kg
    • Travel speed of 7 km/h with load or 12 km/h without load
    • Lift speed of 0,12 m/s with load or 0,19 m/s without load
    • a load centre of 600 mm in width

    More info

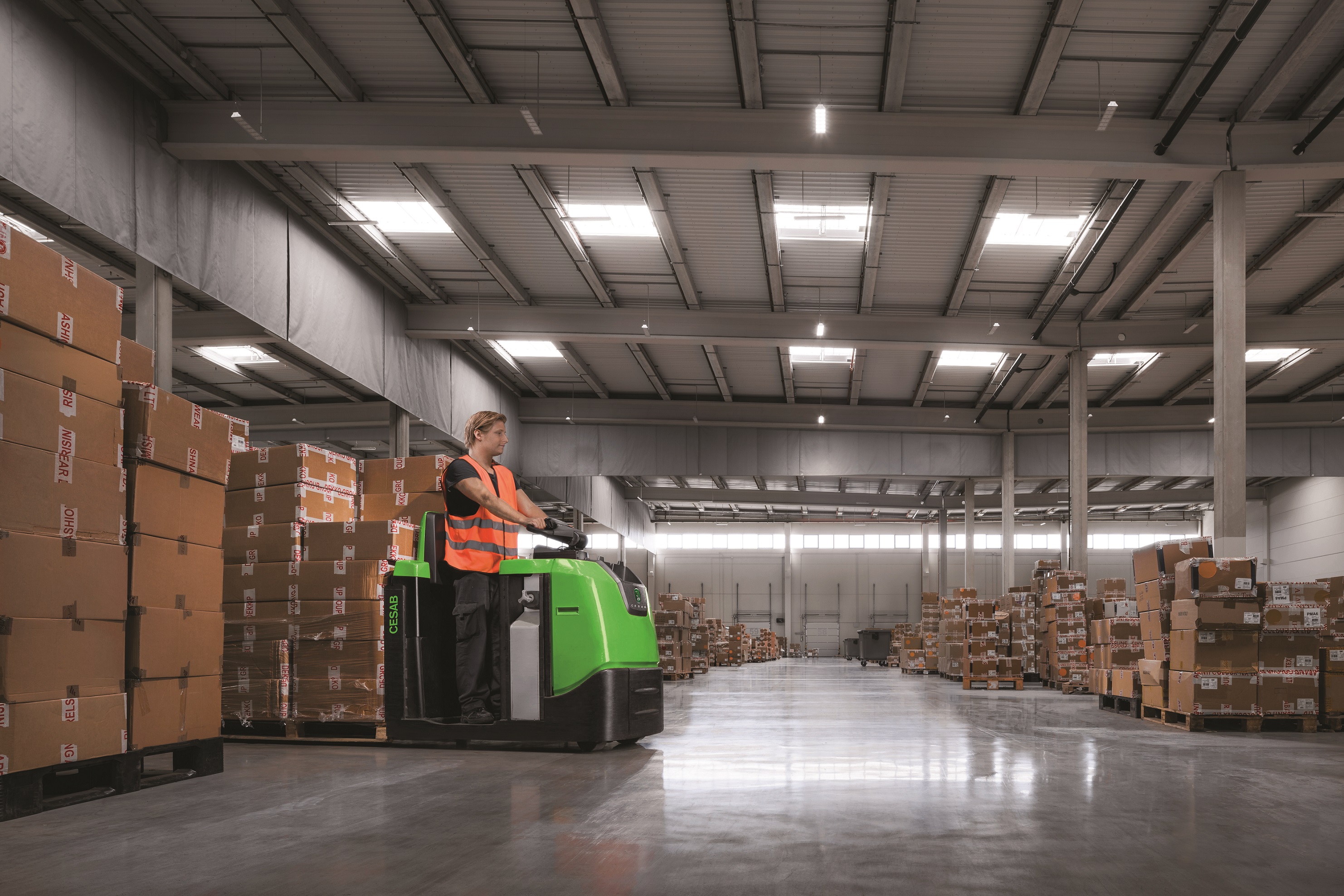

    CESAB low level order picker O112P application

    O112 - O112P:

    The CESAB O-series focuses on high load capacities and maximization of output in order to achieve optimal performance at every level.

    The ultra-compact design of the CESAB O-Series allows for optimum use of warehouse space and easy manoeuvring in picking aisles. Designed to work with the operator, not the other way around, CESAB O-Series trucks are fully programmable from personal settings for top speed and acceleration to individual auto-braking settings.

    Regenerative braking lets energy flow back to the battery whenever the operator presses the brake pedal. This energy-saving feature helps each O-Series truck achieve maximum uptime from every battery charge.

    But these trucks are also designed to provide maximum safety thanks to:

    • Sturdy chassis construction, protecting both operator & load
    • PIN-protected operation
    • Choice between 3-4 wheels for optimal stability
    • Automatic speed reduction
    • Automatic braking when the operator leaves the vehicle while driving
    • High grip floor

    With a fork lift of 800 mm, the CESAB O112 and O112P are ideal for picking heavier goods offering:

    • a load capacity of 1200 kg
    • Travel speed of 8 km/h with load or 12 km/h without load
    • Lift speed of 0,13 m/s with load or 0,15 m/s without load
    • a load centre of 1200 mm in width

    More info

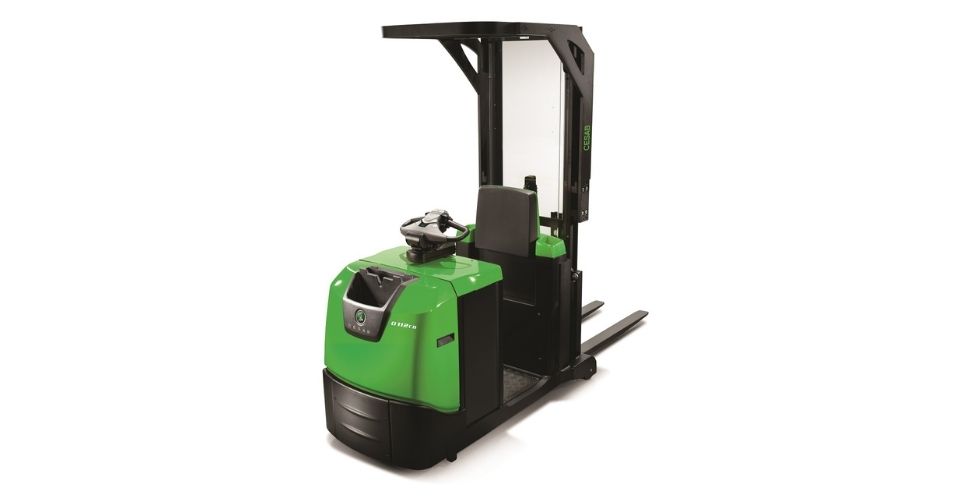

    CESAB low level order picker O112cb

    O112CB:

    The CESAB O-series focuses on high load capacities and maximization of output in order to achieve optimal performance at every level.

    The ultra-compact design of the CESAB O-Series allows for optimum use of warehouse space and easy manoeuvring in picking aisles. Designed to work with the operator, not the other way around, CESAB O-Series trucks are fully programmable from personal settings for top speed and acceleration to individual auto-braking settings.

    Regenerative braking lets energy flow back to the battery whenever the operator presses the brake pedal. This energy-saving feature helps each O-Series truck achieve maximum uptime from every battery charge.

    But these trucks are also designed to provide maximum safety thanks to:

    • Sturdy chassis construction, protecting both operator & load
    • PIN-protected operation
    • Choice between 3-4 wheels for optimal stability
    • Automatic speed reduction
    • Automatic braking when the operator leaves the vehicle while driving
    • High grip floor

    The CESAB O112CB is a hybrid, two-in-one solution, designed for picking as well as stacking. It offers:

    • a load capacity of 1200 kg
    • Travel speed of 7 km/h with load or 12 km/h without load
    • Lift speed of 0,12 m/s with load or 0,27 m/s without load
    • a load centre of 500 mm in width

    More info

    O120X - O118XP:

    The CESAB O-series focuses on high load capacities and maximization of output in order to achieve optimal performance at every level.

    The ultra-compact design of the CESAB O-Series allows for optimum use of warehouse space and easy manoeuvring in picking aisles. Designed to work with the operator, not the other way around, CESAB O-Series trucks are fully programmable from personal settings for top speed and acceleration to individual auto-braking settings.

    Regenerative braking lets energy flow back to the battery whenever the operator presses the brake pedal. This energy-saving feature helps each O-Series truck achieve maximum uptime from every battery charge.

    But these trucks are also designed to provide maximum safety thanks to:

    • Sturdy chassis construction, protecting both operator & load
    • PIN-protected operation
    • Choice between 3-4 wheels for optimal stability
    • Automatic speed reduction
    • Automatic braking when the operator leaves the vehicle while driving
    • High grip floor

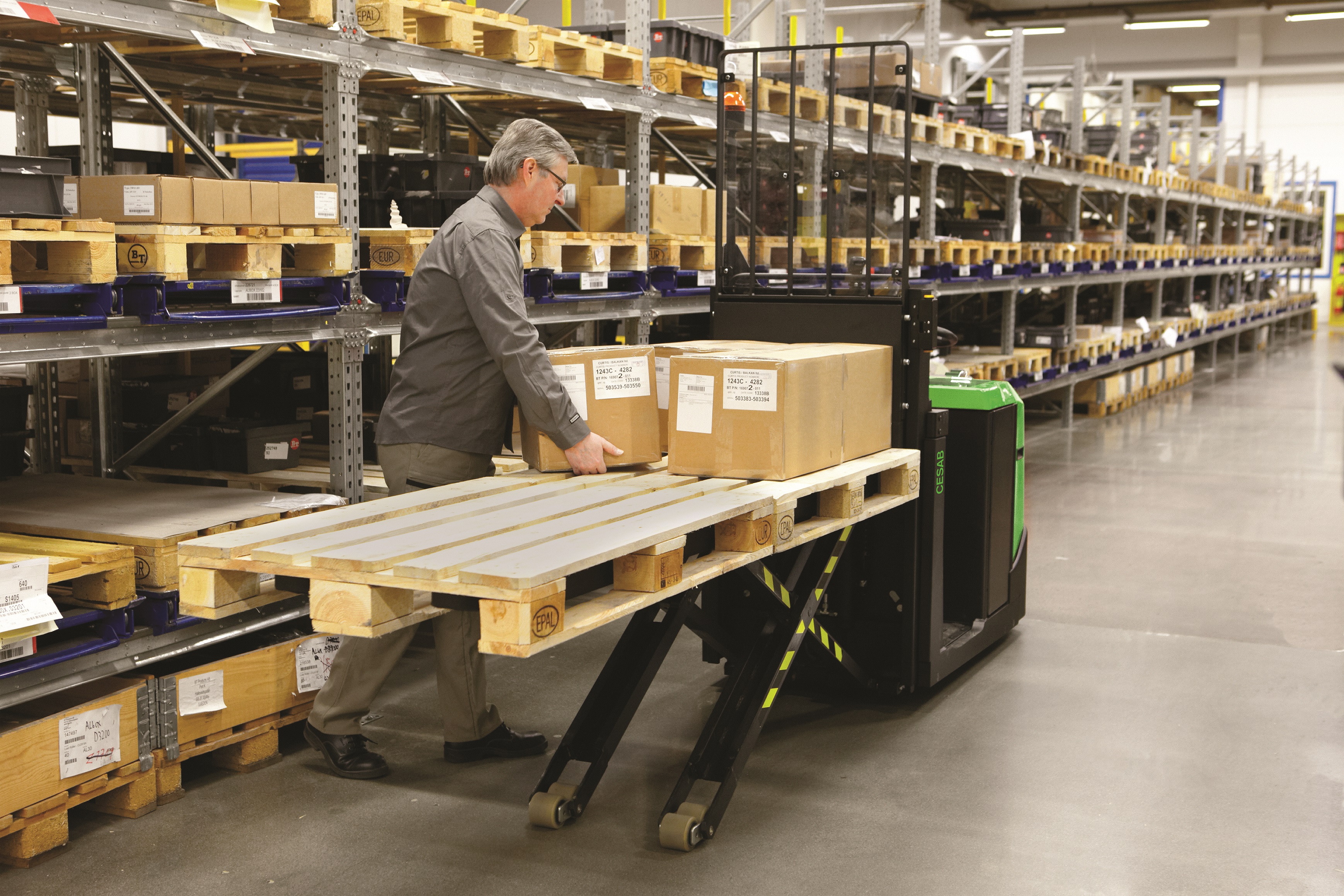

    The CESAB O120X & O118XP are scissor lift X-version models ideal for applications where forks need to be lifted at working height offering:

    • a load capacity of 1800-2000 kg*
    • Travel speed of 8,5 km/h with load or 12 km/h without load
    • Lift speed of 0,07 m/s with load or 0,12 m/s without load
    • a load centre of 1200-1400 mm in width

    More info

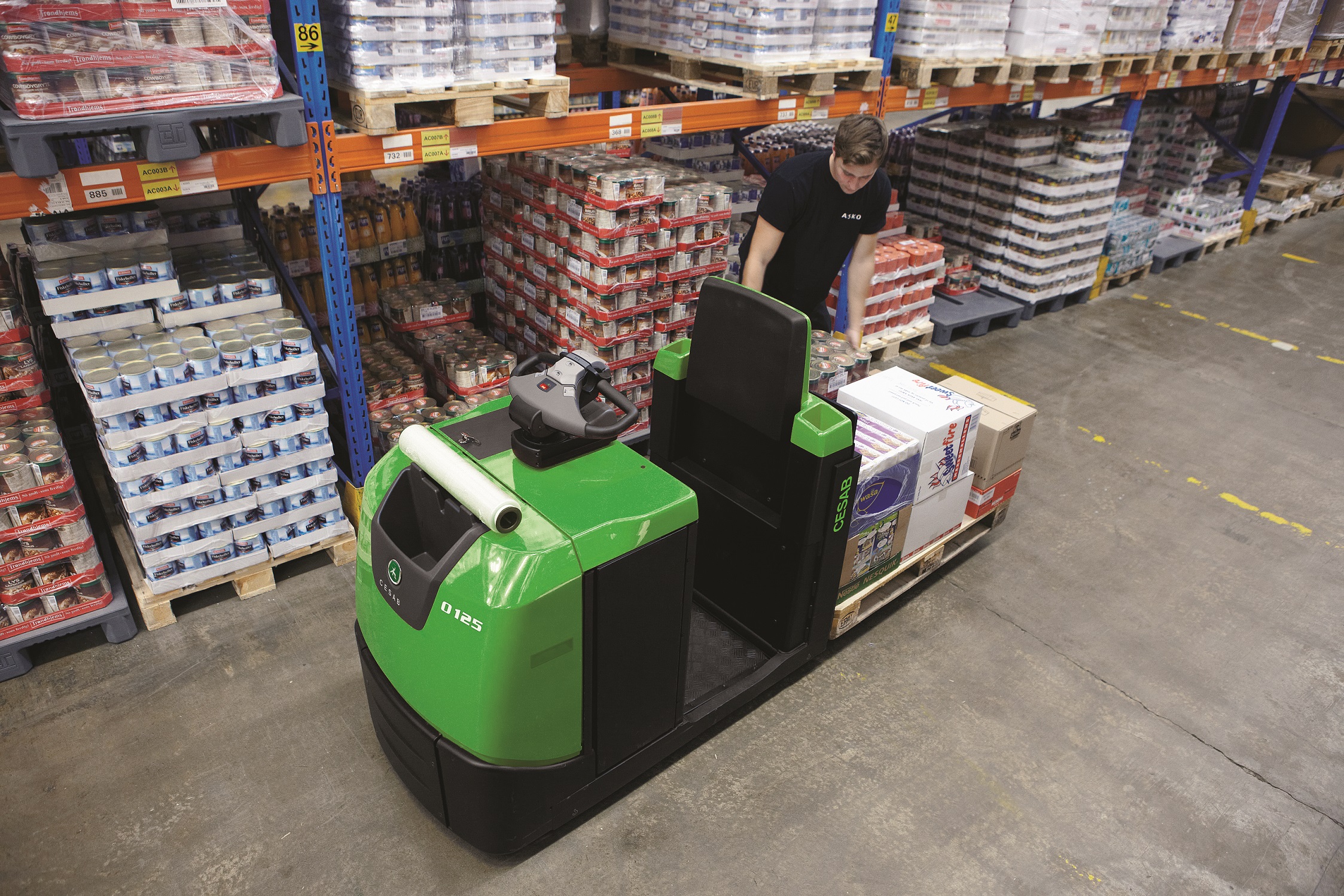

    CESAB low level order picker O125 application

    O125 - O125P:

    The CESAB O-series focuses on high load capacities and maximization of output in order to achieve optimal performance at every level.

    The ultra-compact design of the CESAB O-Series allows for optimum use of warehouse space and easy manoeuvring in picking aisles. Designed to work with the operator, not the other way around, CESAB O-Series trucks are fully programmable from personal settings for top speed and acceleration to individual auto-braking settings.

    Regenerative braking lets energy flow back to the battery whenever the operator presses the brake pedal. This energy-saving feature helps each O-Series truck achieve maximum uptime from every battery charge.

    But these trucks are also designed to provide maximum safety thanks to:

    • Sturdy chassis construction, protecting both operator & load
    • PIN-protected operation
    • Choice between 3-4 wheels for optimal stability
    • Automatic speed reduction
    • Automatic braking when the operator leaves the vehicle while driving
    • High grip floor

    The CESAB O125 and O125P are the workhorses of low-level order picking, with a wide range of fork dimensions to fit both pallets and roll-containers offering:

    • a load capacity of 2500 kg
    • Travel speed of 8 km/h with load or 12 km/h without load
    • Lift speed of 0,067 m/s with load or 0,094 m/s without load
    • a load centre of 1200 mm in width
